eCoVan Ultra Light

Ultra lightweight bodykits and boxes made with ECOFONT PET core 14 UL, for up to 5T

Features

  • High focus on lightness
  • Stylish, all white bodykit
  • Integrated aluminium rearframe
  • Quick assembly
  • Subframe included in basic execution
  • Available in different colours

Possible dimensions

  • External
    Length from 2900 mm mini to 4900 mm maxi, per 100mm
    Height from 2100 mm mini to 2650 mm max, per 50mm
    Width from 2000 mm mini to 2500 mm maxi, per 50mm
  • Internal
    Length from 2858 mm mini to 4858 mm maxi, per 100mm
    Height from 1963 mm mini to 2516 mm max, per 50mm
    Width from 1948 mm mini to 2448 mm maxi, per 50mm

How we deliver

  • We always deliver on an individual loading rack.
  • Toolkit box and assembly instructions included.

Download product flyer

Technical specs kit

Side wallsWhite ECOFONT panels with PET core
Front wallWhite ECOFONT panel with PET core
RoofWhite ECOFONT panel with PET core
Rear frameWhite aluminium integrated rear frame
Surrounding profilesWhite painted aluminium profiles

Technical specs subframe

LongeronsPredrilled aluminium longerons of 110mm height
CrossbearersAluminium crossbearers of 70mm height
FloorAnti-slip plywood floor, 100% birch
TruckbracketsSupplied with galvanized truckbrackets, specific to the chassis

Available options

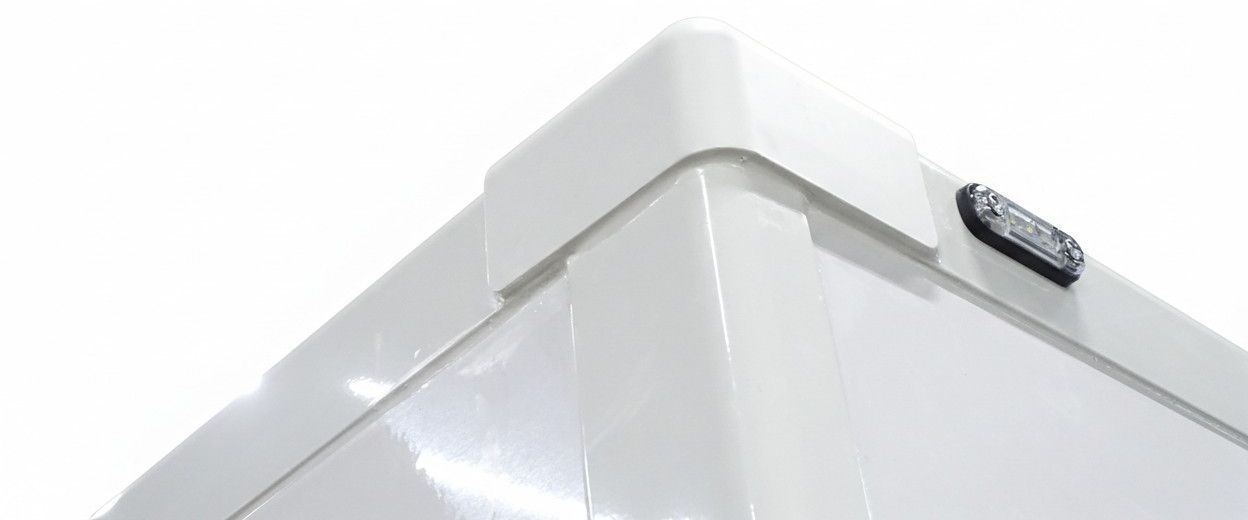

  • Top marker lights on the front wall
  • Plywood front wall
  • Translucent polyester roof with gelcoat for good UV resistance
  • Ecofont PET 25 UL roof
  • Plastifont 35mm ISO roof
  • LED internal light with sensor
  • LED light strips with or without sensor left and right of roof
  • PLASTIFONT 25mm PU core rear doors
  • ECOFONT 25mm flap with continuous hinge
  • Roller shutter frame for floor 0
  • Nose 65mm for taillift combination
  • Handgrip : white translucent strap

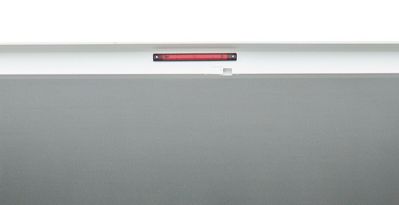

  • 3rd brakelight
  • Top marker lights for the rear
  • Single side door 930mm aperture width with piano hinge
  • Double side door 1600mm aperture width with piano hinges
  • Sliding door aperture width 930mm
  • Universal rail galvanized or aluminium
  • Aluminium airline rail
  • Light pin track aluminium, plant-on
  • SEMI- recessed pin track aluminium with rails with or without grey carpet
  • Straps for the SEMI- recessed pin track and the Light pin track
  • Front- and side walls covered with grey carpet
  • Capitons and tubes
  • Aluminium strip to fix accessories to inside of front- and or side walls
  • Extra I-shape wear plate above the standard L-shape for total height 240mm
  • Polyester external wheel arches
  • Panels with coloured gelcoat layer + coloured profiles & frames (min. 10 pcs)
  • Aluminium subframe in pieces for kit (without floor plates)
  • 1 piece NidaFloor covered with VetroGrip or AluRice (box option)
  • Side marker lights supplied loose (box option)
  • Self-supporting iso floor (with or without) alu longerons/truck brackets (box option)
  • Drainpipe (box option)
  • White polyester luton (box option)
  • Mudguards delivered loose (box option)
  • Side guard bars delivered loose (box option)
  • Step for side door delivered loose (box option)
  • Sliding step foldable galva for the rear (box option)
  • Wite roller shutter (box option)
  • Alu step in the rear over the complete width delivered loose (box option)
  • Aluminium step in the rear (box option)
  • Universal light plate delivered loose (box option)
  • Sidemarker lights mounted (box option)
  • Taillift buffer plates delivered loose (box option)
  • Lashing rings in floor (box option)
  • Rails on floor and roof
  • Plancher cabine // soon available
  • …

For more options or further information, please contact us

We would be happy to provide you with more information or make an appointment.

Contact us+32 (0) 50 31 25 13
